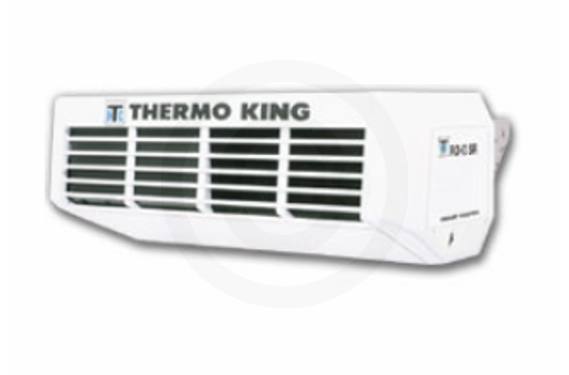

Thermo King RD-II SR Model 50 w/ Electric Standby
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • SMART REEFER - industry's most advanced microprocessor
  • Superior Load Encircling™ airflow for total load protection
  • Lightweight/corrosion-resistant frame and exterior panels
  • Clean and silent diesel engine
  • Better service accessibility
  • Superior heating capacity and faster defrosts with exclusive TherMax™ system
  • Environmentally safe R-404A chlorine-free refrigerant
Standard Features
  • SMART REEFER (µP-T) microprocessor controller features: Cycle-Sentry start/stop control system, In-cab remote display, Continuous system monitoring, Unit self check/pre-tripping , 40 alarm codes (the most thorough in the industry) , Smart Defrost 6 hour meters (3 programmable), Programmable set point range, Low-speed lock-in (low noise operation), Choice of units of measure
  • TK 376 clean & silent diesel engine
  • Model X426 high-performance compressor
  • TherMax™ system for faster defrosts, greater heating capacity
  • Automatic phase correction
  • Three-way control valve
  • Receptacle AC, 230V
  • Corrosion-resistant protection for extended system life, long lasting appearance
  • Polyester powder-coated aluminum frame
  • Composite outer cover
  • Stainless steel condenser exterior hardware
  • Stainless steel evaporator hardware
  • Coated refrigerant tubing
  • Silicone coolant hoses
Maintenance Reduction Features
  • Alternator, 23 amp 12V dc
  • Oil bath-type air cleaner
  • Spin-on fuel filter
  • Full-flow oil filter
  • Tapered roller bearing fanshafts
  • Tapered roller bearing idler pulley
Protection Devices
  • Engine low oil level switch
  • Engine coolant high temperature cutout
  • Engine low oil pressure cutout
  • Refrigerant high pressure cutout
  • Refrigerant high pressure refief valve
  • Motor overload protector
  • 12V circuit breaker (current limiter)
Installation Kit
  • Installation hardware
  • Battery cables
  • Electric fuel pump
  • Fuel lines
  • Fuel tank pickup and return tube
Optional Features
  • Data logging
  • Body-mount control box (µP-T)
  • Low decibel sound reduction package (6 dBA)
  • R-134a refrigerant
  • Air cleaner, dry type
  • Easy-read thermometer
  • Bypass oil filter
  • Remote lights
  • Door Sentry 1 door switch
  • Electric motors - 380V/3-Phase/50Hz, 6.25 hp, 460V/3-Phase/60Hz, 7.5 hp
  • Electric heater strips
  • Stainless steel grill
  • Top screen condenser
  • Diesel fuel heater
  • Battery box, universal
  • Battery, 12V (dealer supplied)
  • Fuel tanks (bands and brackets included) - 30 gal. (114 liter) undermount aluminum, 50 gal. (190 liter) undermount aluminum
Specifications
  • Model Available: RD-II 30 SR: Cooling and heating on engine operation.
  • Operation: Continuous run cool/heat on engine or electic standby operation
  • Operation: Start/stop cool/heat on engine or electric standby operation in Cycle-Sentry mode
  • Operation: Automatic defrost initiation & termination with microprocessor controlled "Smart Defrost" designed to minimize defrost time
  • Operation: Automatic defrost initiation with air switch
  • Refrigeration Capacity: System net cooling capacity at 100 degrees F ambient and high speed engine/60Hz electric power operation.
  • Evaporator Return Air (With Standard R-404A Refrigerant Package): 35 deg. F - 20,500 BTU/hr on Engine Power - 17,500 BTU/hr on Electric Standby Power
  • Evaporator Return Air (With Standard R-404A Refrigerant Package): 0 deg. F - 15,500 BTU/hr on Engine Power - 14,000 BTU/hr on Electric Standby Power
  • Evaporator Return Air (With Standard R-404A Refrigerant Package): -20 deg. F - 10,000 BTU/hr on Engine Power - 9,500 BTU/hr on Electric Standby Power
  • Evaporator Return Air (With Optional R-134a Refrigerant Package): 35 deg. F - 23,000 BTU/hr on Engine Power - 19,000 BTU/hr on Electric Standby Power
  • Evaporator Return Air (With Optional R-134a Refrigerant Package): 0 deg. F - 19,000 BTU/hr on Engine Power - 8,500 BTU/hr on Electric Standby Power
  • Heating Capacity: Engine Power 15,000 BTU/hr
  • Heating Capacity: Electric Power 12,000 BTU/hr
  • Engine: Clean and Silent
  • Engine: TK 376 diesel engine
  • Engine: Conforms to all CARB '95 emission standards
  • Engine: Three-cylinder, liquid-cooled
  • Engine: 60.0 cu. in. (950 cm³) displacement
  • Engine: 11.8 qt. (11.0 liter) oil capacity
  • Compressor: Proven, High Performance
  • Compressor: Thermo King X426, four-cylinder
  • Compressor: 26.0 cu. in. (426 cm³) displacement
  • Evaporator Blower Performance: On high-speed engine operation at 0 in. (0 mm) water column external static pressure
  • Evaporator Blower Performance: Airflow volume: 1800 ft³/min. (3060 m³/hr)
  • Evaporator Blower Performance: Discharge velocity: 20.0 ft/sec. (6.1 m/s)
  • Electric Motor: 230V/3-Phase/60Hz, 7.5 hp
  • Weight RD-II SR 50: 1035 lbs (470 kg)
  • Dimensions Evaporator: Height: 13.0 in. (330 mm) Width: 47.88 in. (1216 mm) Depth: 29.75 in. (756 mm)
  • Dimensions Condenser: Height: 25.6 in. (651 mm) Width: 70.0 in. (1778 mm) Depth: 31.5 in. (800 mm)
  • Dimensions In-cab Controls: Height: 2.32 in. (58.93 mm) Width: 7.36 in. (187 mm) Depth: 1.63 in. (41.4 mm)

Specifications

Capacities
Refrigeration Capacity Evaporator Return Air (With Standard R-404A Refrigerant Package): 35 deg. F - 20,500 BTU/hr on Engine Power - 17,500 BTU/hr on Electric Standby Power; Evaporator Return Air (With Standard R-404A Refrigerant Package): 0 deg. F - 15,500 BTU/hr on Engine Power - 14,000 BTU/hr on Electric Standby Power; Evaporator Return Air (With Standard R-404A Refrigerant Package): -20 deg. F - 10,000 BTU/hr on Engine Power - 9,500 BTU/hr on Electric Standby Power; Evaporator Return Air (With Optional R-134a Refrigerant Package): 35 deg. F - 23,000 BTU/hr on Engine Power - 19,000 BTU/hr on Electric Standby Power; Evaporator Return Air (With Optional R-134a Refrigerant Package): 0 deg. F - 19,000 BTU/hr on Engine Power - 8,500 BTU/hr on Electric Standby Power
Heating Capacity Heating Capacity: Engine Power 15,000 BTU/hr ; Heating Capacity: Electric Power 12,000 BTU/hr
Airflow
Airflow Volume Airflow volume: 1800 ft.³/min. (3060 m³/hr)
Discharge Velocity (airthrow) Discharge velocity: 20.0 ft./sec. (6.1 m/s)
Engine
Engine Type Three-cylinder, liquid-cooled
Engine Model TK 376 diesel engine
Compressor
Compressor Type Proven, High Performance X426 four-cylinder
Compressor Model Thermo King X426, four-cylinder
Compressor Displacement 26.0 cu. in. (426 cm³) displacement
General
Weight 1035 lbs (470 kg)
Dimensions Dimensions Evaporator: Height: 13.0 in. (330 mm) Width: 47.88 in. (1216 mm) Depth: 29.75 in. (756 mm); Dimensions Condenser: Height: 25.6 in. (651 mm) Width: 70.0 in. (1778 mm) Depth: 31.5 in. (800 mm); Dimensions In-cab Controls: Height: 2.32 in. (58.93 mm) Width: 7.36 in. (187 mm) Depth: 1.63 in. (41.4 mm)

Compare Models

 Print








Year 2009
Manufacturer Thermo King
Model RD-II SR Model 50 w/ Electric Standby
Airflow
Airflow Volume Airflow volume: 1800 ft.³/min. (3060 m³/hr)
Discharge Velocity (airthrow) Discharge velocity: 20.0 ft./sec. (6.1 m/s)
Capacities
Refrigeration Capacity Evaporator Return Air (With Standard R-404A Refrigerant Package): 35 deg. F - 20,500 BTU/hr on Engine Power - 17,500 BTU/hr on Electric Standby Power; Evaporator Return Air (With Standard R-404A Refrigerant Package): 0 deg. F - 15,500 BTU/hr on Engine Power - 14,000 BTU/hr on Electric Standby Power; Evaporator Return Air (With Standard R-404A Refrigerant Package): -20 deg. F - 10,000 BTU/hr on Engine Power - 9,500 BTU/hr on Electric Standby Power; Evaporator Return Air (With Optional R-134a Refrigerant Package): 35 deg. F - 23,000 BTU/hr on Engine Power - 19,000 BTU/hr on Electric Standby Power; Evaporator Return Air (With Optional R-134a Refrigerant Package): 0 deg. F - 19,000 BTU/hr on Engine Power - 8,500 BTU/hr on Electric Standby Power
Heating Capacity Heating Capacity: Engine Power 15,000 BTU/hr ; Heating Capacity: Electric Power 12,000 BTU/hr
Compressor
Compressor Type Proven, High Performance X426 four-cylinder
Compressor Model Thermo King X426, four-cylinder
Compressor Displacement 26.0 cu. in. (426 cm³) displacement
Engine
Engine Type Three-cylinder, liquid-cooled
Engine Model TK 376 diesel engine
Engine Rating
Maintenance Interval
General
Weight 1035 lbs (470 kg)
Dimensions Dimensions Evaporator: Height: 13.0 in. (330 mm) Width: 47.88 in. (1216 mm) Depth: 29.75 in. (756 mm); Dimensions Condenser: Height: 25.6 in. (651 mm) Width: 70.0 in. (1778 mm) Depth: 31.5 in. (800 mm); Dimensions In-cab Controls: Height: 2.32 in. (58.93 mm) Width: 7.36 in. (187 mm) Depth: 1.63 in. (41.4 mm)
