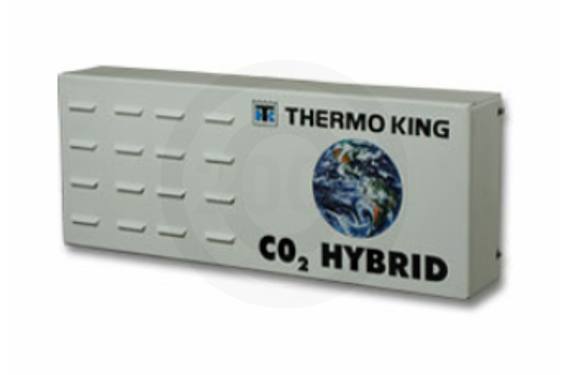

Thermo King CO2 Hybrid
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Product maintained at set point longer
  • Improved temperature control
  • Reduced emissions
  • Reduced fuel consumption
  • Ideal for distribution services
  • Reduced diesel system requirements
  • Integrated operation
Standard Features
  • Boost capacity by 9,900 to 13,650 Btu/hr (2,900 to 4,000 W).
  • Reach set point rapidly after each delivery.
  • Reduced noise level.
Specifications
  • Refrigeration Capacity: System net cooling capacity at 86 degrees F (30 degrees C) and 100 degrees F (38 degrees C) ambient and high speed engine operation.
  • Evaporator Return Air (Watts): 32 deg. F (0 deg. C) - 6,750 TS-300 Watts 9,650 w/ Hybrid Watts - 8,400 TS-500 Watts 12,400 w/ Hybrid Watts
  • Evaporator Return Air (Watts): -4 deg. F (-20 deg. C) - 4,000 TS-300 Watts 6,900 w/ Hybrid Watts - 5,900 TS-500 Watts 9,900 w/ Hybrid Watts
  • Evaporator Return Air (BTU/hr): 35 deg. F (2 deg. C) - 22,600 TS-300 BTU/hr 32,500 w/ Hybrid BTU/hr - 25,000 TS-500 BTU/hr 38,650 w/ Hybrid BTU/hr
  • Evaporator Return Air (BTU/hr): 0 deg. F (-18 deg. C) - 12,500 TS-300 BTU/hr 22,400 w/ Hybrid BTU/hr - 18,000 TS-500 BTU/hr 31,650 w/ Hybrid BTU/hr
  • Evaporator Return Air (BTU/hr): -20 deg. F (-29 deg. C) - 7,500 TS-300 BTU/hr 17,400 w/ Hybrid BTU/hr - 12,000 TS-500 BTU/hr 25,650 w/ Hybrid BTU/hr
  • Noise: Noise levels are reduced because the diesel system will operate in low speed for a greater period of time
  • Weight System Charged: 1280 lbs (580 kg)
  • Weight Empty: 460 lbs (210 kg)
  • Dimensions Tank: Width: 66.7 in. (1695 mm) Diameter: 26.2 in. (666 mm)
  • Dimensions Vavle Box: Height: 11.35 in. (288 mm) Width: 29.0 in. (737 mm) Depth: 4.95 in. (126 mm)

Specifications

Capacities
Refrigeration Capacity Evaporator Return Air (BTU/hr): 32 deg. F (0 deg. C) - 6,750 TS-300 Watts 9,650 w/ Hybrid Watts - 8,400 TS-500 Watts 12,400 w/ Hybrid Watts; Evaporator Return Air (Watts): -4 deg. F (-20 deg. C) - 4,000 TS-300 Watts 6,900 w/ Hybrid Watts - 5,900 TS-500 Watts 9,900 w/ Hybrid Watts; Evaporator Return Air (Watts): 35 deg. F (2 deg. C) - 22,600 TS-300 BTU/hr 32,500 w/ Hybrid BTU/hr - 25,000 TS-500 BTU/hr 38,650 w/ Hybrid BTU/hr; Evaporator Return Air (BTU/hr): 0 deg. F (-18 deg. C) - 12,500 TS-300 BTU/hr 22,400 w/ Hybrid BTU/hr - 18,000 TS-500 BTU/hr 31,650 w/ Hybrid BTU/hr; Evaporator Return Air (BTU/hr): -20 deg. F (-29 deg. C) - 7,500 TS-300 BTU/hr 17,400 w/ Hybrid BTU/hr - 12,000 TS-500 BTU/hr 25,650 w/ Hybrid BTU/hr
General
Weight Weight System Charged: 1280 lbs (580 kg); Weight Empty: 460 lbs (210 kg)
Dimensions Dimensions Tank: Width: 66.7 in. (1695 mm) Diameter: 26.2 in. (666 mm); Dimensions Vavle Box: Height: 11.35 in. (288 mm) Width: 29.0 in. (737 mm) Depth: 4.95 in. (126 mm)

Compare Models

 Print








Year 2009
Manufacturer Thermo King
Model CO2 Hybrid
Style Truck
Airflow
Airflow Volume
Discharge Velocity (airthrow)
Capacities
Refrigeration Capacity Evaporator Return Air (BTU/hr): 32 deg. F (0 deg. C) - 6,750 TS-300 Watts 9,650 w/ Hybrid Watts - 8,400 TS-500 Watts 12,400 w/ Hybrid Watts; Evaporator Return Air (Watts): -4 deg. F (-20 deg. C) - 4,000 TS-300 Watts 6,900 w/ Hybrid Watts - 5,900 TS-500 Watts 9,900 w/ Hybrid Watts; Evaporator Return Air (Watts): 35 deg. F (2 deg. C) - 22,600 TS-300 BTU/hr 32,500 w/ Hybrid BTU/hr - 25,000 TS-500 BTU/hr 38,650 w/ Hybrid BTU/hr; Evaporator Return Air (BTU/hr): 0 deg. F (-18 deg. C) - 12,500 TS-300 BTU/hr 22,400 w/ Hybrid BTU/hr - 18,000 TS-500 BTU/hr 31,650 w/ Hybrid BTU/hr; Evaporator Return Air (BTU/hr): -20 deg. F (-29 deg. C) - 7,500 TS-300 BTU/hr 17,400 w/ Hybrid BTU/hr - 12,000 TS-500 BTU/hr 25,650 w/ Hybrid BTU/hr
Heating Capacity
Compressor
Compressor Type
Compressor Model
Compressor Displacement
Engine
Engine Type
Engine Model
Engine Rating
Maintenance Interval
General
Weight Weight System Charged: 1280 lbs (580 kg); Weight Empty: 460 lbs (210 kg)
Dimensions Dimensions Tank: Width: 66.7 in. (1695 mm) Diameter: 26.2 in. (666 mm); Dimensions Vavle Box: Height: 11.35 in. (288 mm) Width: 29.0 in. (737 mm) Depth: 4.95 in. (126 mm)
